Sixty Four Pixels - CV.OCD (Black) - MIDI to CV box

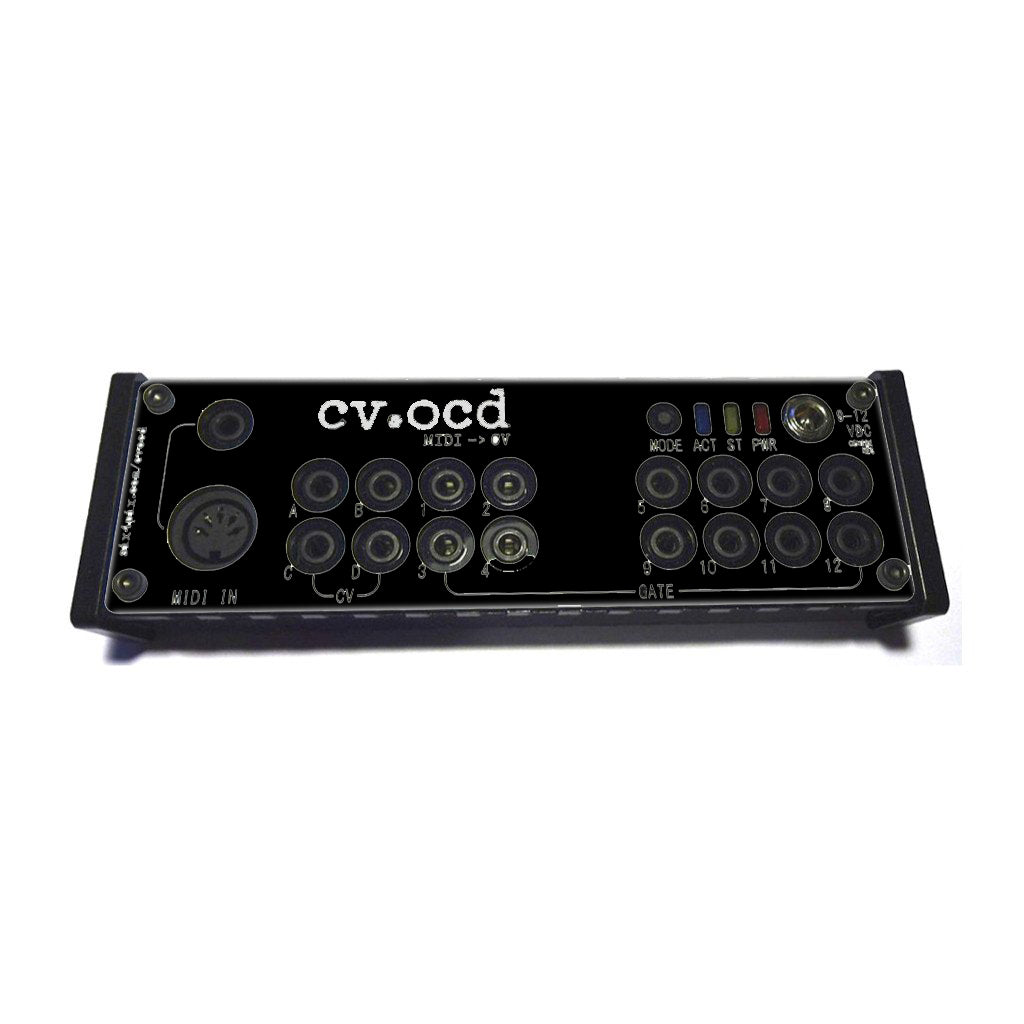

CV.OCD with Black Face
A super flexible MIDI to CV box
Four analog CV outputs, Twelve gate outputs, a wide range of MIDI to CV mapping options at a budget price!
** Come with a Power Adapter **
CV.OCD is a device which converts MIDI signals to the Control Voltage (CV) and Trigger/Gate signals which are used to control traditional analog synthesizers.
As well as doing this useful bit of “plumbing”, CV.OCD is designed to open up some creative options that go beyond what a simple MIDI-CV converter can usually do. If you get a bit OCD about your CV this could be the box for you!
CV.OCD has four assignable “continuous” analog CV outputs and twelve assignable gate/trigger outputs
It has powerful functionality for generating clock, trigger and non-note gates from MIDI information. For controlling your analog equipment via MIDI you are probably not going to get as much bang for your buck with anything else!
Each of the FOUR analog CV outputs have 0-8V output level and 12-bit resolution and be assigned to any of
- Note pitch (1V/octave - or Hz/V with latest firmware)
- Note velocity
- Controllers (CC)
- Pitch bend
- Channel aftertouch
- Fixed voltage
Each of the TWELVE gate outputs has 5V output level and can be assigned to any of
- Note on/off
- Note velocity above threshold
- Controller (CC) crossing threshold
- MIDI clock (with divider/offset and transport gate)
- MIDI transport states/events (start/stop/running etc)
CV.OCD allows to group pitch and gate outputs to achieve configurations like
- Play up to four monosynths together like a single polysynth by playing chords on a single MIDI channel
- Play multiple synths cyclically with consecutive notes going to different synths
- Implement keyboard splits to control bass and lead synths in different ranges of same keyboard
You get 12 gate outputs to play with! As well as simply gating notes you can
- Map specific MIDI notes to specific gate outputs for triggering drum machines etc,
- Apply velocity threshold to get an accent trigger based on the MIDI velocity or trigger different gates depending on velocity
- Output divided and offset pulse clocks to mess with time itself!
The device is configured by MIDI system exclusive patches, which you can create using a web based configuration page. Onces installed on the device, the patch is saved during power cycles.
See the manual here Take a look at the configuration page here.
Future firmware upgrades to the device can simply be installed over MIDI as sysex files.
CV.OCD has a standard 5-pin DIN MIDI input with optical isolation. There is also a 3.5mm stereo jack MIDI input which is compatible with Novation, Arturia and other devices which use a "hot tip" configuration (For Korg devices you need to use the 5-pin input). Only one of the MIDI inputs may be used at a time.
Power is 9-12V DC via a 2.1mm barrel plug with negative centre pin (This is the type of supply used with most guitar stompboxes)

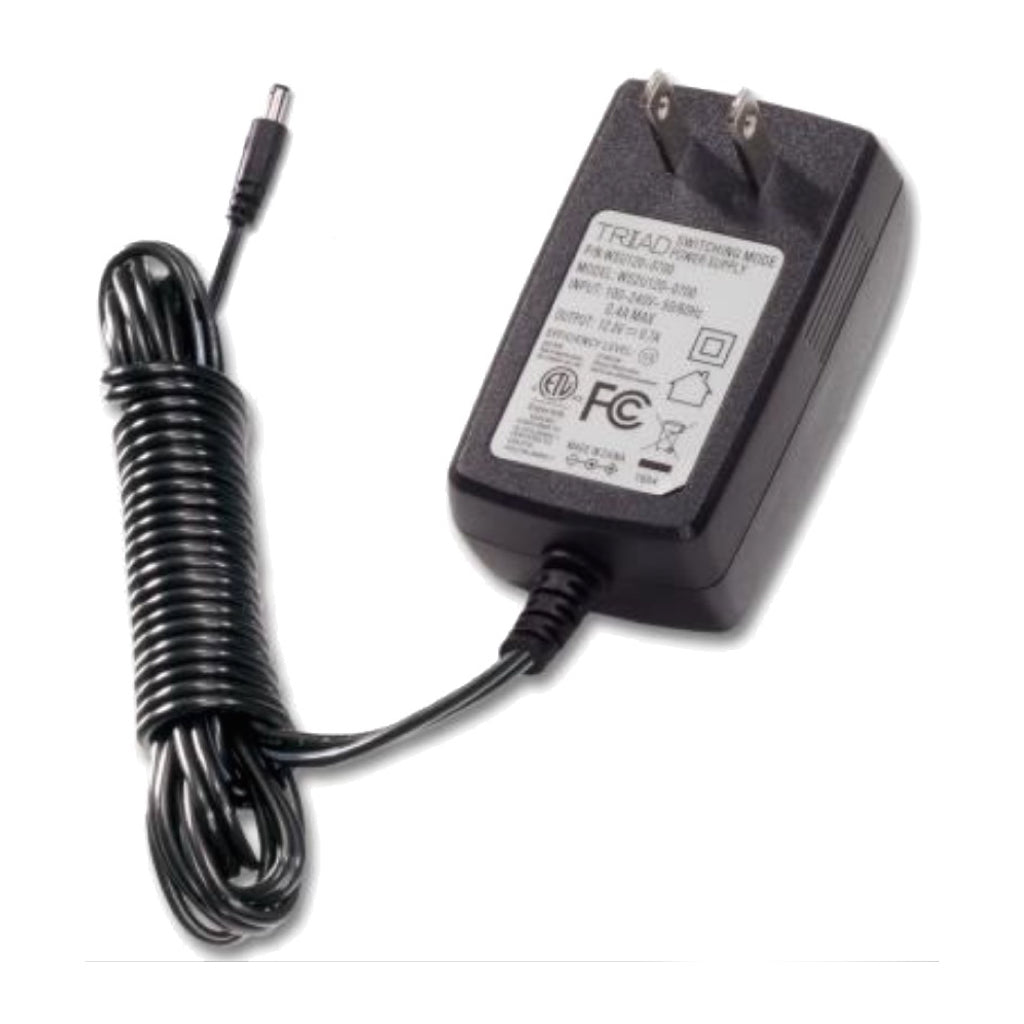

** Come with a 9 V Power Adapter **
- Input: 100-240V 50/60HZ
- Output rating: 9V DC @ 0.66A
- Output connector (ID x OD): 2.1mm x 5.5mm female center negative plug
- DC cord length: 6 feet
- U.S. 2 Prong Plug
The device comes FULLY ASSEMBLED and tested.
Size approx 17.6cm x 5.5cm x 2.7cm. Approx weight 175g.
Laser cut acrylic case with laser etched acrylic face plate.
Designed and hand assembled in Brighton, UK
