Sixty Four Pixels - Banana Split - 6 Way Midi Splitter/Thru Box

Sixty Four Pixels

  • $109.00


Split MIDI 6 ways - a compact, cost-effective solution for musicians

** Come with a Power Adapter **
** New Version with 3.5mm MIDI jack using MMA standard **

Sending MIDI to multiple devices should be simple! A thru-chain can add latency and you can't easily swap devices about during a performance, but a MIDI interface with multiple outputs can be expensive.

BANANA SPLIT is a simple, compact and cost effective solution for splitting a single MIDI input to six parallel MIDI outputs which can be "hot swapped" without impacting each other and offers near-zero latency on the MIDI signal.

The MIDI input is optically isolated, per MIDI-spec and each output is electrically buffered and protected with current limiting resistors.

This latest version of BANANA SPLIT can supply power to "bus powered" MIDI devices.

BANANA SPLIT includes a Beat LED which blinks with the MIDI clock. This provides both an indication that a MIDI clock is present and a "visual metronome" (which is always useful!)

MIDI IN connection can be made via a 3.5mm stereo jack socket as an alternative to the 5-pin MIDI input (do not try to use both inputs at the same time!).

This updated version works with a 3.5mm MIDI jack connection using the new MIDI Manufacturers Association standard (this differs from earlier BANANA SPLIT version). For hardware (e.g. Novation, Arturia) using a different standard it is possible to make a small mod to change the socket polarity or even repurpose the socket as a pulse clock output for clocking Volcas, Pocket Operators, Eurorack etc. All MIDI OUTs are 5-pin sockets.

BANANA SPLIT arrives fully assembled and tested. No assembly is required

The enclosure is laser-cut from 3mm translucent black acrylic sheet with yellow/black laser-engraved acrylic laminate face plate and frosted black acrylic end pieces.

Power is via a 2.1mm barrel connector as used on most "wall wart" type adaptors and standard on most stomp-boxes. An on-board diode bridge and voltage regulator mean that it will work with center positive or negative supply, and at any input voltage from 9-12V.

** Come with a 9 V Power Adapter  **

  • Input: 100-240V 50/60HZ
  • Output rating: 9V DC @ 0.66A
  • Output connector (ID x OD): 2.1mm x 5.5mm female center negative plug
  • DC cord length: 6 feet
  • U.S. 2 Prong Plug

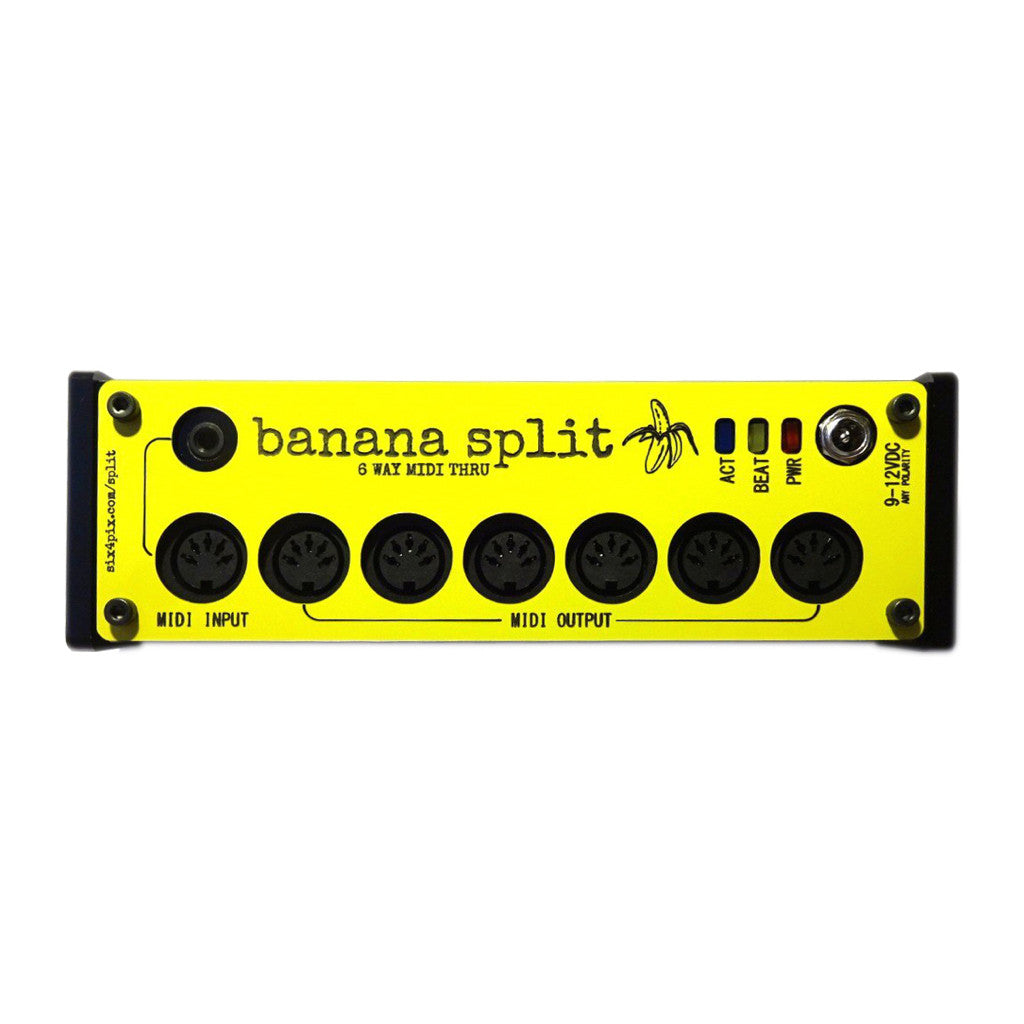

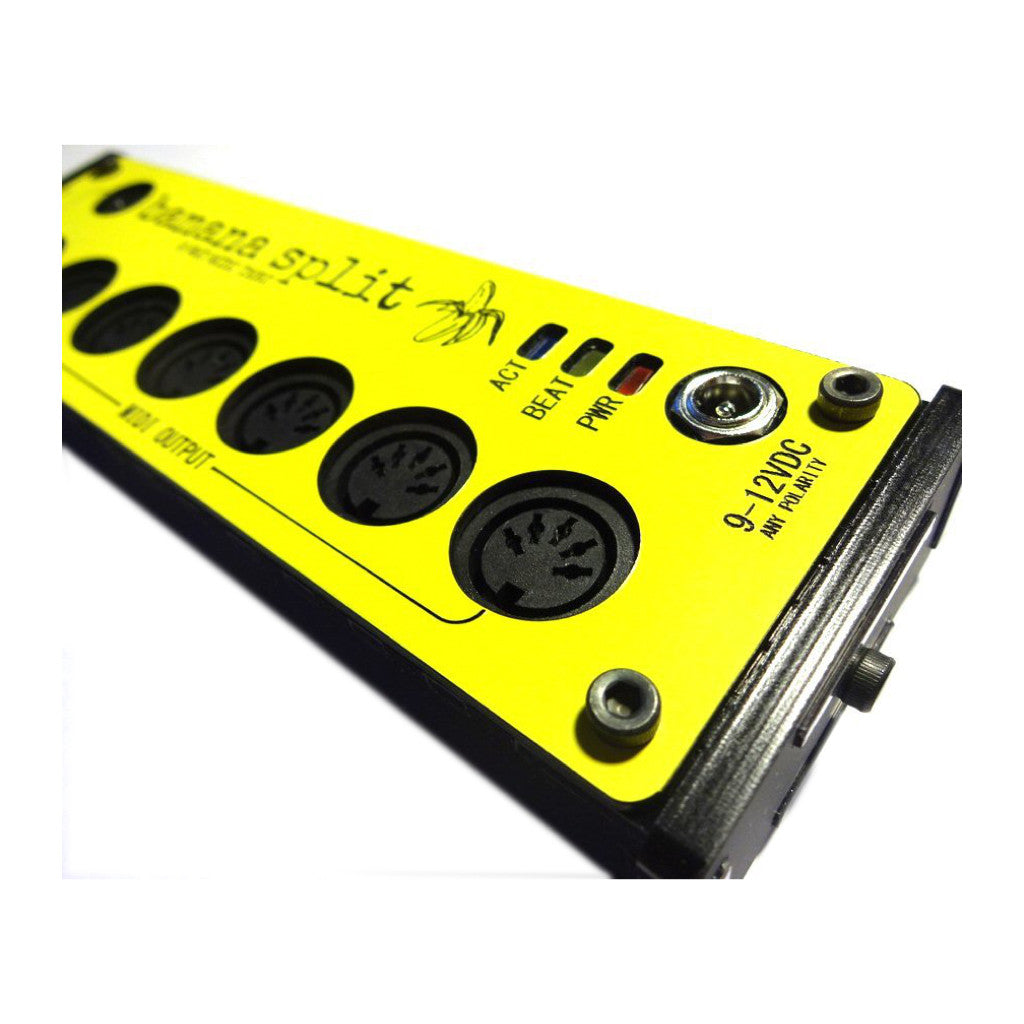

Integral LED's indicate power supply, clock beat and activity on the MIDI input socket. Add to this the 5-Pin MIDI sockets for input and six outputs and that's pretty much it... It does what it says on the skin!

Size is 175mm x 55mm x 28mm Weight is approx 170g

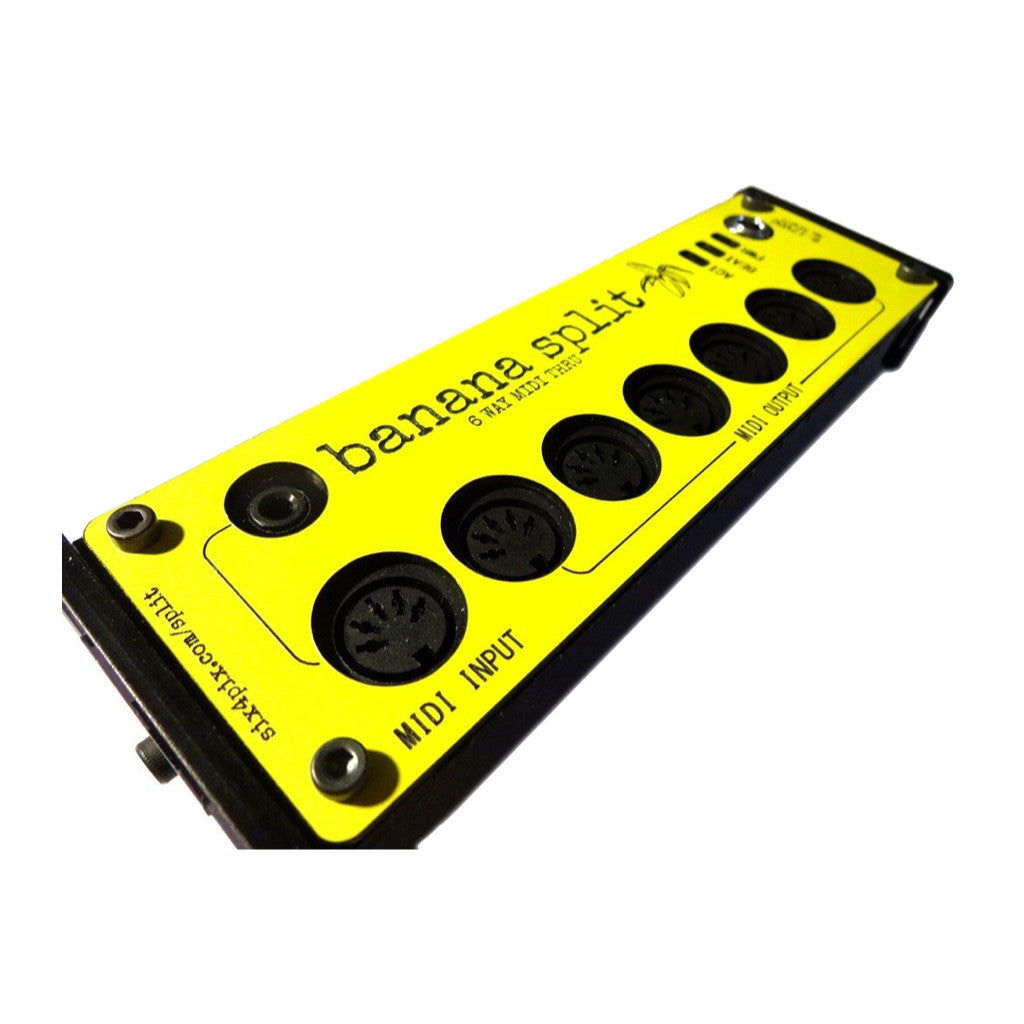

All connections are via the front panel and can be accessed when the device is held (for example) in flight case foam or inset into a panel in a studio.
