Ortofon Pro S OM Single Cartridge - MeMe Antenna

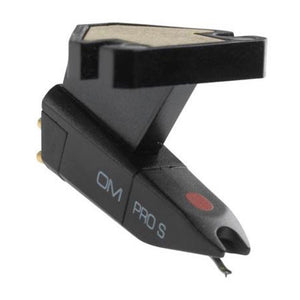

Ortofon Pro S OM Single Cartridge

Ortofon

  • $49.99


OM Pro S entry-level cartridge

New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

OM Pro S technical data

  • Stylus Type Spherical
  • Tracking Force 4.0 g (40 mN)
  • Output Voltage 5 mV
  • Frequency Range 20-18.000 Hz

Specifications:

  • Output voltage at 1000Hz, 5cm/sec. - 5 mV
  • Channel balance at 1kHz - 2 dB
  • Channel separation at 1kHz - 20 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency range at -3dB - 20-18.000 Hz
  • Tracking ability at 315 Hz at recommmended tracking force - 70 μm
  • Compliance, dynamic lateral - 7 μm/m N
  • Stylus type - Spherical
  • Stylus tip radius - R 18 μm
  • Tracking force range - 3 - 5 g
  • Tracking force recommended - 4 g
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 750 Ohm
  • Internal inductance - 450 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 200-600 pF
  • OM cartridge weight - 5,0 g
  • OM pre-mounted on SH-4 weight incl. screws - 14,5 g
  • Replacement stylus unit - Pro S


For information about set-up and alignment, stylus care and lifetime, break-in time, troubleshooting check out our DJ FAQ.

Download the DJ range cartridges user guide
