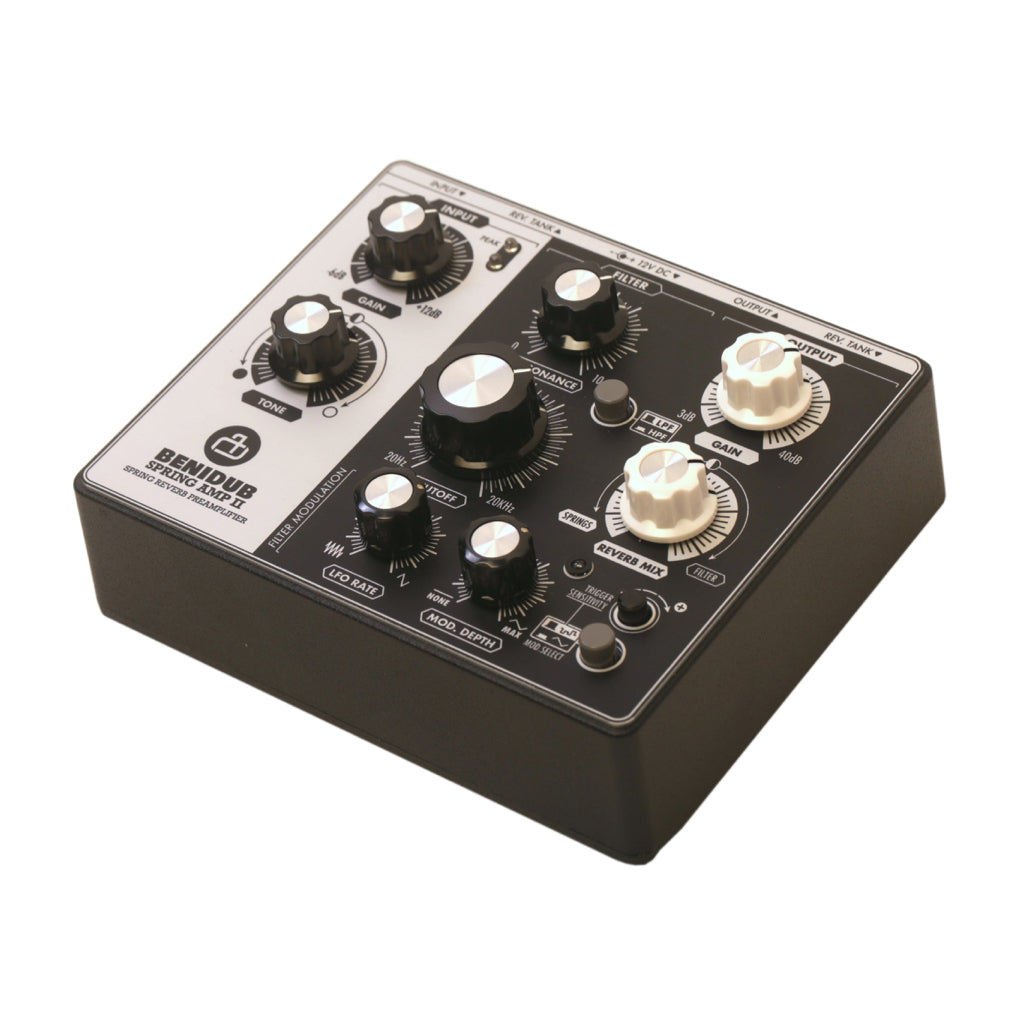

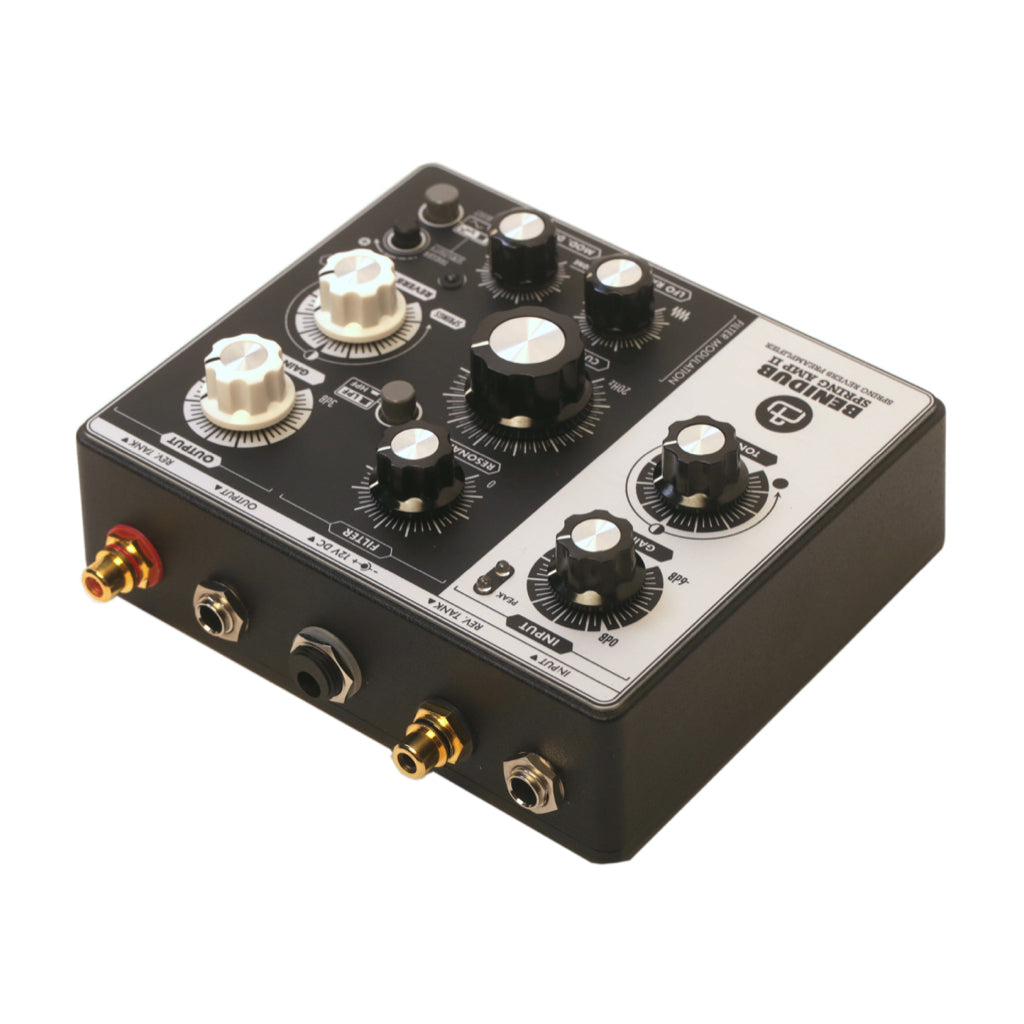

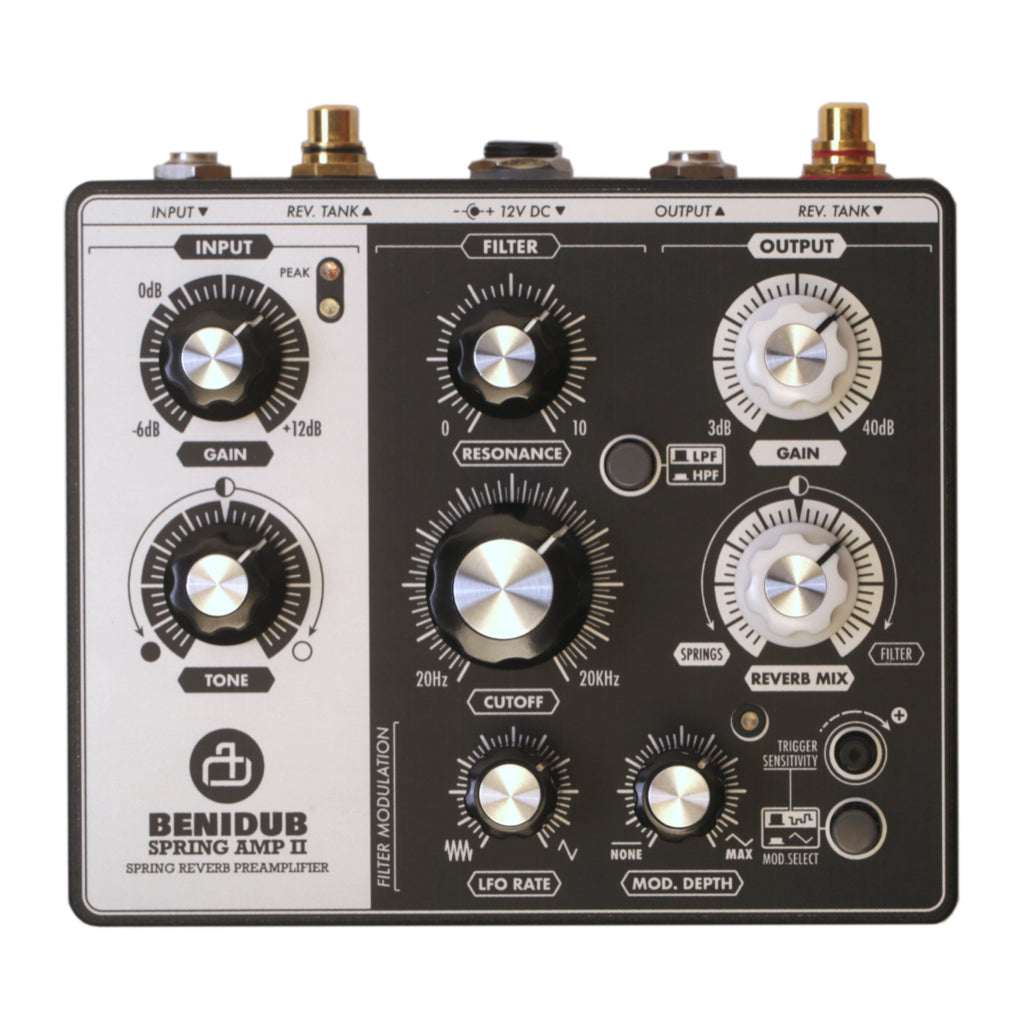

 Benidub SPRING AMP II - Spring Reverb Amplifier

The Spring Amp II combines an HiFi amplifier for spring reverb tanks with a 2 poles VCF and relative modulation section. It works as an interface between standard audio mixers and spring reverb tanks made for guitar amps.

  • 7.5W constant current amplifier, drives 8ohm input reverb tanks to the maximum volume and best trebles response.
  • Extra low noise reverb pick up amplifier.
  • 2xLED VU-meter monitors the power amplifier level to easily detect overload.
  • 12dB/oct Resonant Voltage Controlled Filter, selectable HPF or LPF response.
  • Triangular wave or Sample & Hold Filter Modulation
  • Crossfader between filtered and un-filtered reverb output signal.
  • Balanced input 1/4” TRS Jack (15Kohm electronically balanced).
  • Balanced output 1/4” TRS Jack (47R impedance balanced)
  • 12VDC 1A Power Supply (2.1mm x 5.5mm barrel connector, center positive)
  • Size: 150mm x 120mm x 60mm
  • Weight: 580gr

External Power Supply included

(see user manual below for more details)


* Accutronics Spring Reverb Tank 9AB3C1B Available

* Recommended Dual RCA cable available
